Viscosifier
Product Description BENVIS® viscosifier is an economical organophilic clay used to impact viscosity and suspension prope
Send your inquiryDESCRIPTION
Basic Info.
| Model NO. | DFS14-007 |
| Production Capacity | 5000 Mt/Year |
Product Description
Product Description
BENVIS® viscosifier is an economical organophilic clay used to impact viscosity and suspension properties to diesel-based drilling fluids. BENVIS® viscosifier can improve carrying capacity, gel strength and suspension of weight material. It also assists in improving filter-cake quality and filtration control. It can also be used in specialty fluids such as casing pack, packer fluids, lost circulation pills and spotting fluids where viscosity is required. BENVIS® viscosifier is stable at temperatures up to 350°F. This viscosifier employs the composition most widely used through the years in diesel-based muds in a cost-effective economy form.
Applications/Functions
- Cost-effectively builds viscosity and yield points for diesel-based fluids
- Suspends weighting materials and other solids
- Improves cuttings carrying capacity and hole cleaning
- Improves filter-cake quality for reduced fluid loss
- Increases emulsion stability
Advantages
- Temperatures stable up to 350°F
- Especially effective when mixing new fluids in low-shear, low temperature situations such as in mud plant
Typical Properties
- Appearance: Light tan, free flowing powder
- Specific gravity: 1.7
Recommended Treatment
- Add 2-10 ppb in diesel-based drilling fluids slowly through the mixing hopper
Package
- 25 KG SACK
| No. | Product Code | SHARK | Product Description | Applications/Functions |
| 122 | DFS14-001 | BENTONITE | API grade bentoniteAPI | Yield 100 bbls of 15- cp mud per ton. 115mPa.s16m3 |
| 123 | DFS14-002 | SHARKXAN® | Xanthan gum- | Provide excellent suspension and shear-thinning properties and be used up to 250°F ,120ºC |
| 124 | DFS14-003 | SHARKXAN® PLUS | Premium quality, powdered xanthan gum -, | Provide more excellent suspension and shear-thinning properties and be used up to 250°F ,120ºC |
| 125 | DFS14-004 | SHARKXAN® L | Xanthan gum-Liquid | Disperse and mix even more easily than regular xanthan gum , |
| 126 | DFS14-005 | SHARKXAN® N | Premium-grade,clarified xanthan gum biopolymer - | Used in reservoir drill-in fluid systems up to 250°F ,120ºC |
| 127 | DFS14-006 | AQUAVIS® HT | Synthetic Hectorite | HT viscosifier for WBM up to 400°F ,200ºC |
| 128 | DFS14-007 | BENVIS® | Organophilic Bentonite | Viscosifier for OBM up to 350°F,180ºC |
| 129 | DFS14-008 | BENVIS® PLUS | Organophilic Bentonite -highly efficient | Viscosifier for OBM up to 350°F, easy to disperse, rapid yielding ,180ºC,, |
| 130 | DFS14-009 | BENVIS® GOLD | Organophilic hectorite | High performance, significantly more efficient than conventional organoclay viscosifier for OBM-High up to 400°F ,,204ºC |
| 131 | DFS14-010 | BENVIS® HT | Specially designed organoclay | Viscosifier for OBM-Extreme Temperature up to 450°F,230ºC |
| 132 | DFS14-011 | BENSUS® | Suspension agent - Organophilic amino-attapulgite- | Suspend weighting materials and other solids with less increase in viscosity and gel strength than conventional bentonite or hectorite based organoclays, stable excess of 400°F ,,200ºC |
| 133 | DFS14-012 | NEOMOD® | Liquid viscosifer for OBM - blend of vegetable fatty acids ,, | Designed for HPOBM-organoclay-free high performance OBM, stable up to 400°F ,204ºC |

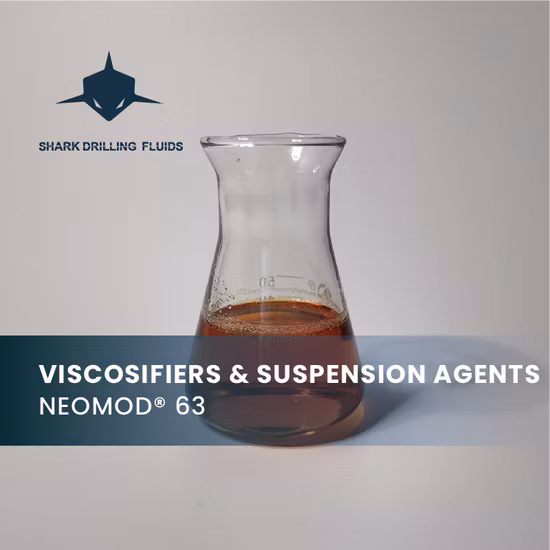

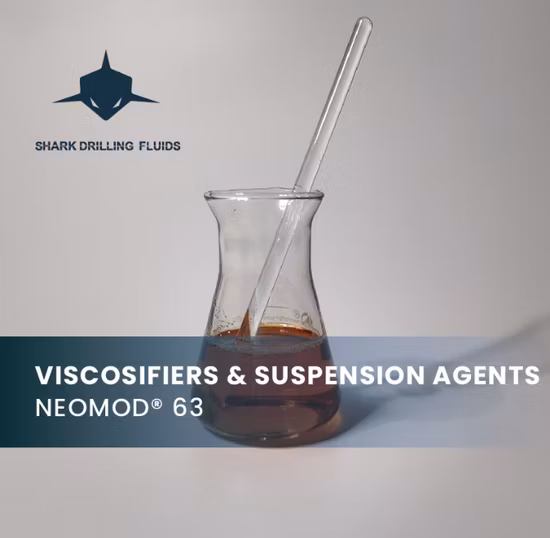

| 134 | DFS14-013 | NEOMOD® 63 | Rheology Modifier for OBM-100% active blend of fatty acids ,,100% | Highly effective in improving the 3 rpm and 6rmp readings of oil-based drilling fluid without increasing the plastic viscosity. 36, |
| 135 | DFS14-014 | NEOSUSTM | Liquid suspension agent for OBM | Specially used in the pre-mixed mud in liquid mud plant or long-distance transportation.It is pourable to below -27°C (-17°F),,27ºC |
